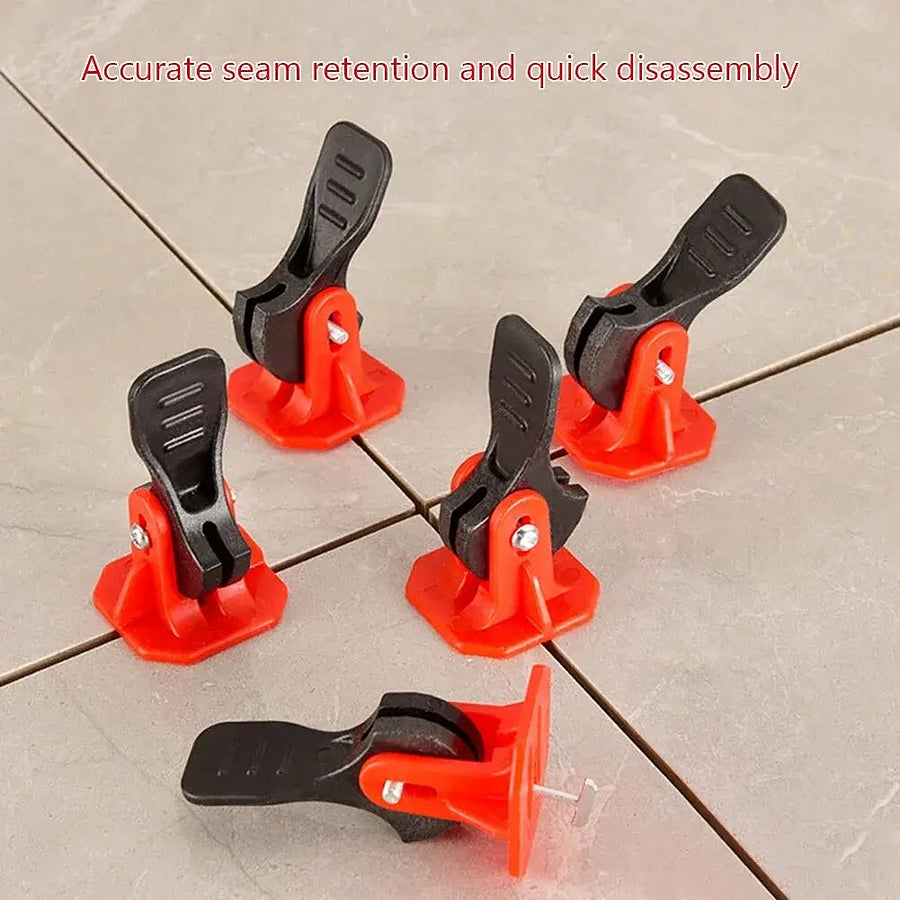

Where four tiles meet
Set one at each corner and along the long edges.
Reusable · 8–13 mm tile · 2 mm joint
Reusable Tile Leveling System
- Pulls neighboring tile edges flush
- Locks with one press, no pliers
- Lifts out after, ready for the next job
Each leveler clamps one joint flat while the mortar sets, so no tile edge cures higher than its neighbor.
How many
50 levelers
$29.95
Bought as packs of 50:
Sets about 25 tiles of 12 x 12 in at a time.Sold out
Sets about 25 tiles of 12 x 12 in at a time.

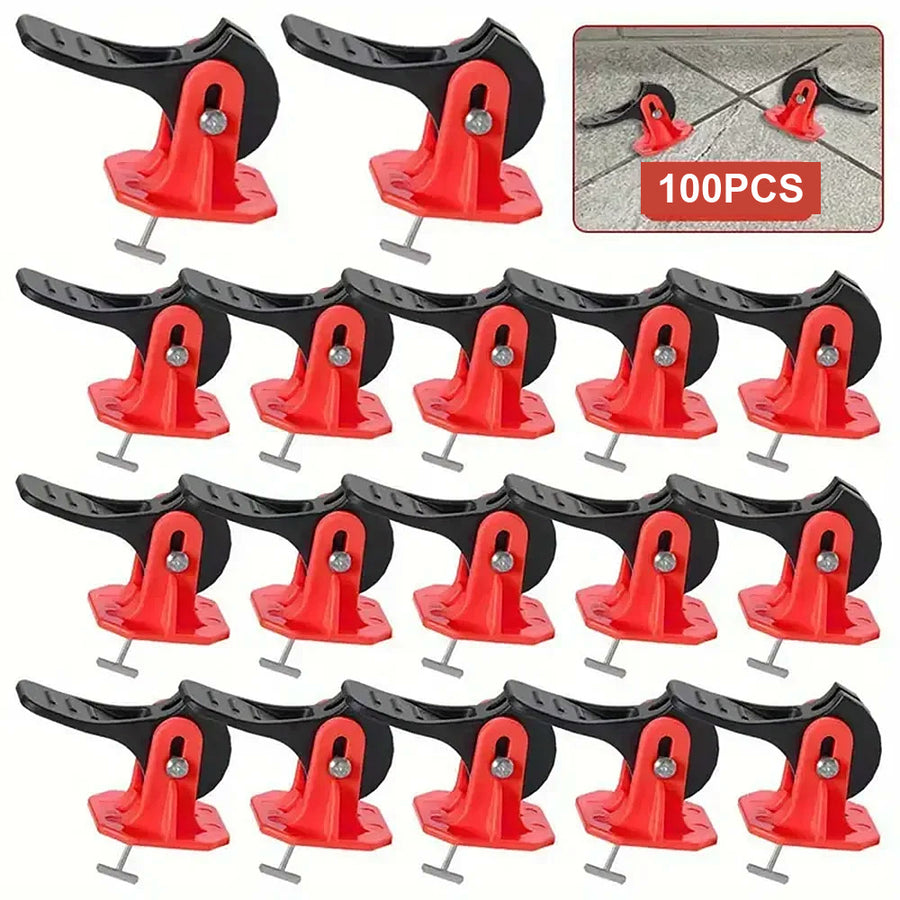

Save 21%100 levelers
$54.95
Bought as packs of 50: $69.90
Sets about 50 tiles of 12 x 12 in at a time.Sold out
Bought as packs of 50: $69.90. $27.48 per 50. Save $14.95 vs packs of 50. Sets about 50 tiles of 12 x 12 in at a time.
Save 29%150 levelers
$74.95
Bought as packs of 50: $104.85
Sets about 75 tiles of 12 x 12 in at a time.Sold out
Bought as packs of 50: $104.85. $24.98 per 50. Save $29.90 vs packs of 50. Sets about 75 tiles of 12 x 12 in at a time.
100 and 150 are two or three packs of 50 and may arrive in more than one parcel. Not sure how many? See “How many do I need?” below.
50 levelers
Total $29.95
- Free US shipping from $49
- 30-day returns on unused items
- Delivery in 7–15 business days
Turn it around
See how it grips, from every side.
Drag to spin it, pinch or scroll to zoom. On a phone, tap the AR button to see it at full size on your floor.
- Red baseWide flat foot that bridges the joint.
- Steel T-pinReplaceable; one screw holds it.
- Black cam leverPress down to lock, lift to release.
3D model made from the maker's dimensions.
How it works

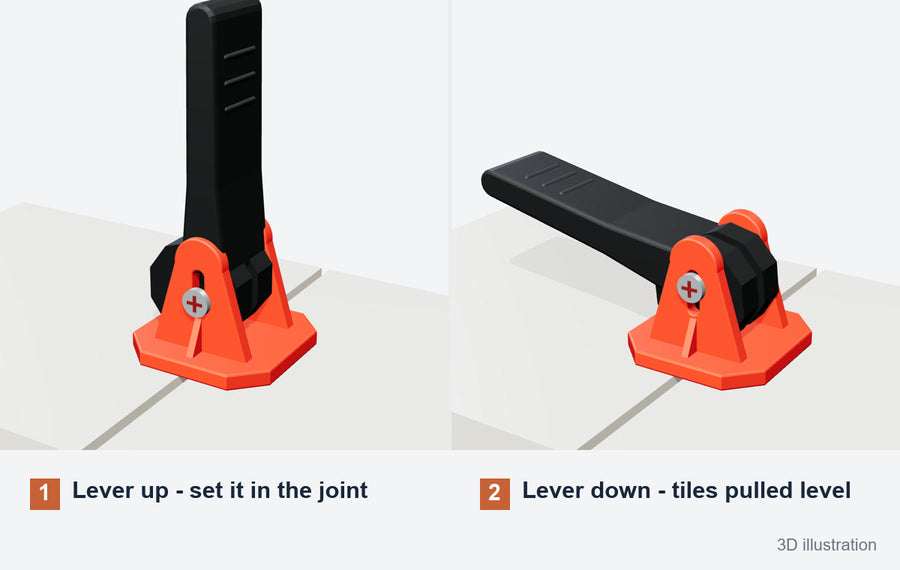

Lever up to set it. Lever down to lock it.
The steel T-pin goes down through the joint and a quarter turn puts its crossbar under the edges of both tiles. Press the black lever down and the pin is drawn up, squeezing both edges between the crossbar and the red base until they sit flush.
Holds while it cures
Locked levelers keep the tiles from creeping or sinking while the mortar sets.
One press, no pliers
The cam lever locks by hand. There are no wedges to tap in and no pliers to squeeze.
Easy on tile edges
The pin is round where it sits in the joint, so turning it is gentle on the tile edges.
3D illustration.
How to use it
Set, lock, cure, lift out.
-
Set the tile
Back-butter and lay the tile in fresh mortar, as you normally would.
-
Insert and turn the pin
With the lever up, push the T-pin down into the joint with its crossbar lined up with the joint. Turn the leveler a quarter turn so the crossbar sits under both tiles, and twist it back and forth a little to clear mortar around the pin.
-
Press the lever down
The pin draws up and the two edges are pulled flush with each other.
-

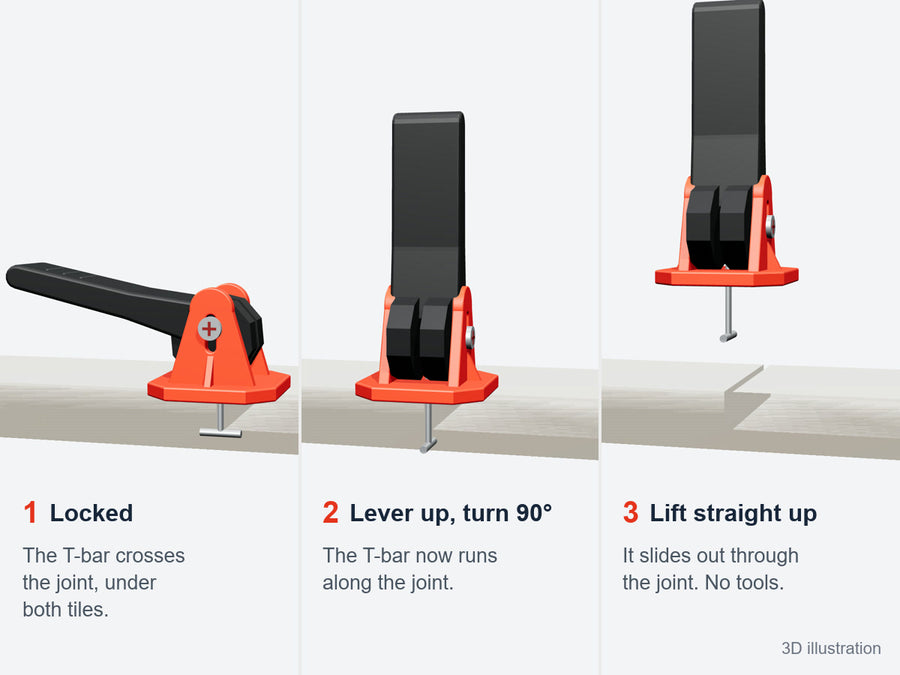

Release, turn, lift out
When the mortar holds the tiles in place (see the set time on the bag), lift the lever, turn the leveler a quarter turn so the crossbar lines up with the joint again, and pull it straight up. No tools are needed. Wipe off any mortar and it is ready for the next job.
Space levelers along every edge, closer together on large tiles. Steps 2 and 4 follow the maker's own instructions.
The specifics
Straight answers
Sizes are the maker's own, from its drawing.
50
levelers per pack
Also in 100 and 150.
8–13mm*
tile thickness
About 5/16 to 1/2 in.
2mm*
joint
About 5/64 in.
≈6.5cm*
tall, lever up
2.55 in.
* Marked figures are the maker's own and are not measured by us.
Full specifications
Reusable cam-lever tile levelers with steel T-pins, 50 in a pack.
- What it is
- A reusable tile leveling system with cam levers. For floor and wall tile.
- Tile thickness
- 8 to 13 mm (about 5/16 to 1/2 in).
- Joint width
- 2 mm. Set by the pin in the joint.

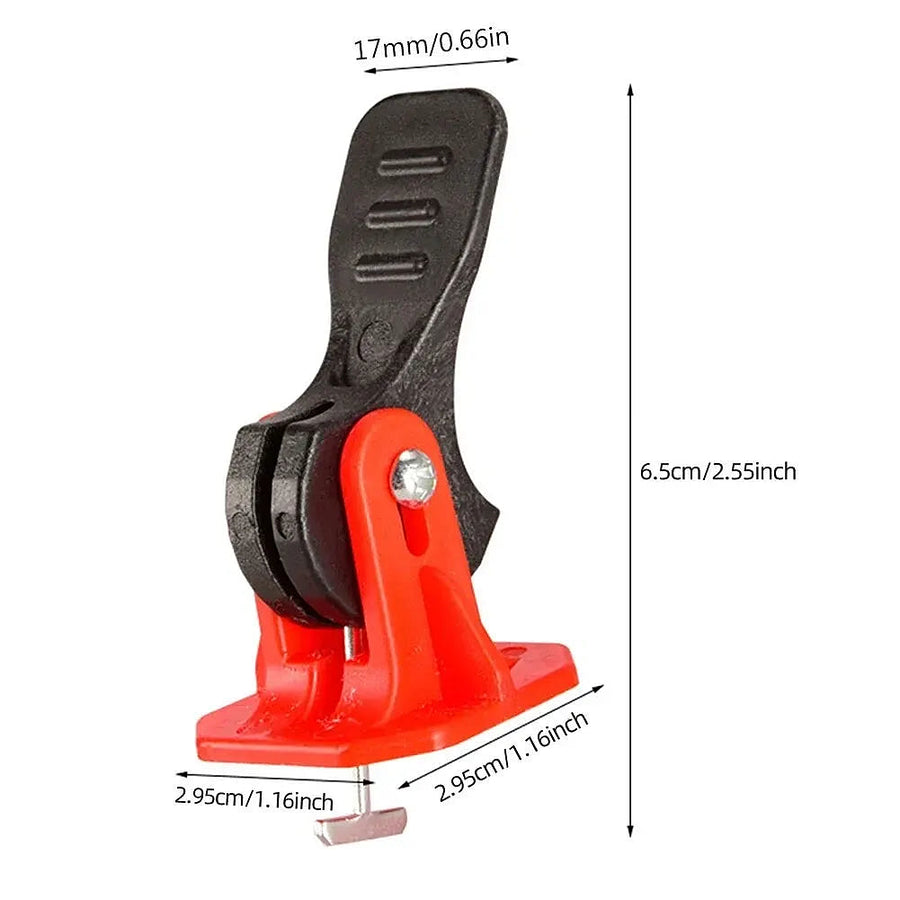

- Base
- 2.95 x 2.95 cm (1.16 x 1.16 in).
- Height
- About 6.5 cm (2.55 in) with the lever up.
- Lever width
- 17 mm (0.66 in).
- Material
- PP plastic body and lever, steel T-pin and screw.
- Color
- Red base, black lever.
In the package
- 50, 100 or 150 tile levelers with steel T-pins, depending on the pack
Mortar, trowel and tile are not included.
On the job
Floors, walls, big tiles and small.
Photos of the levelers set in the joints.

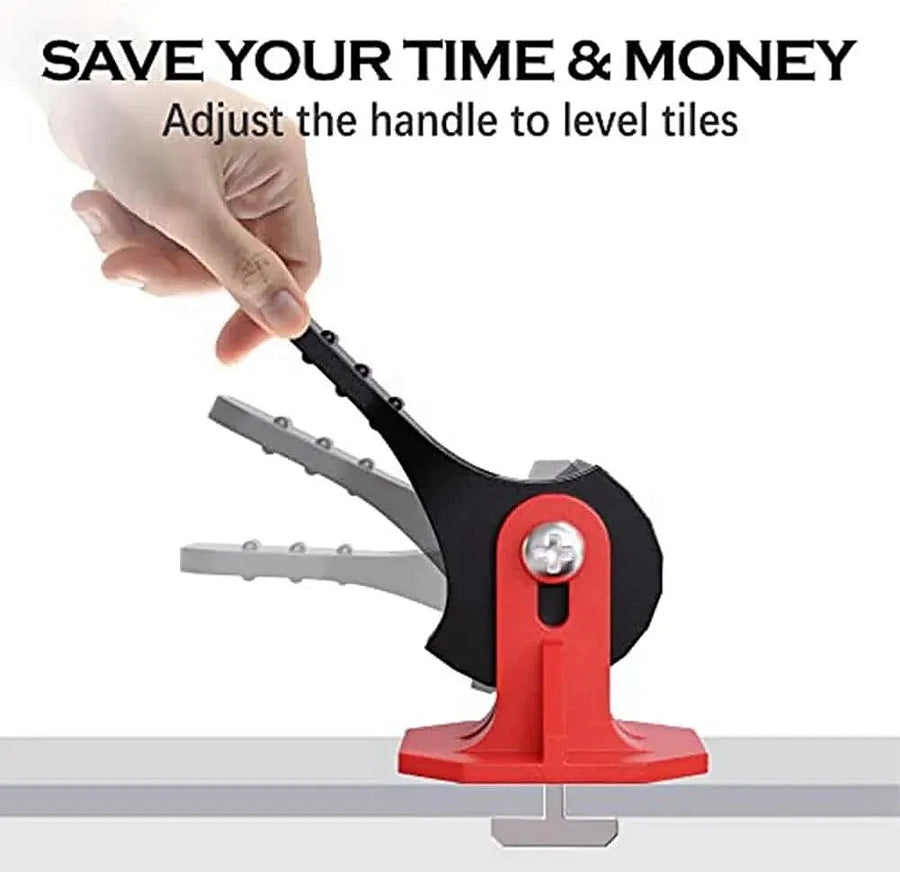

Ridged lever
Grooves on the lever give your thumb a grip.

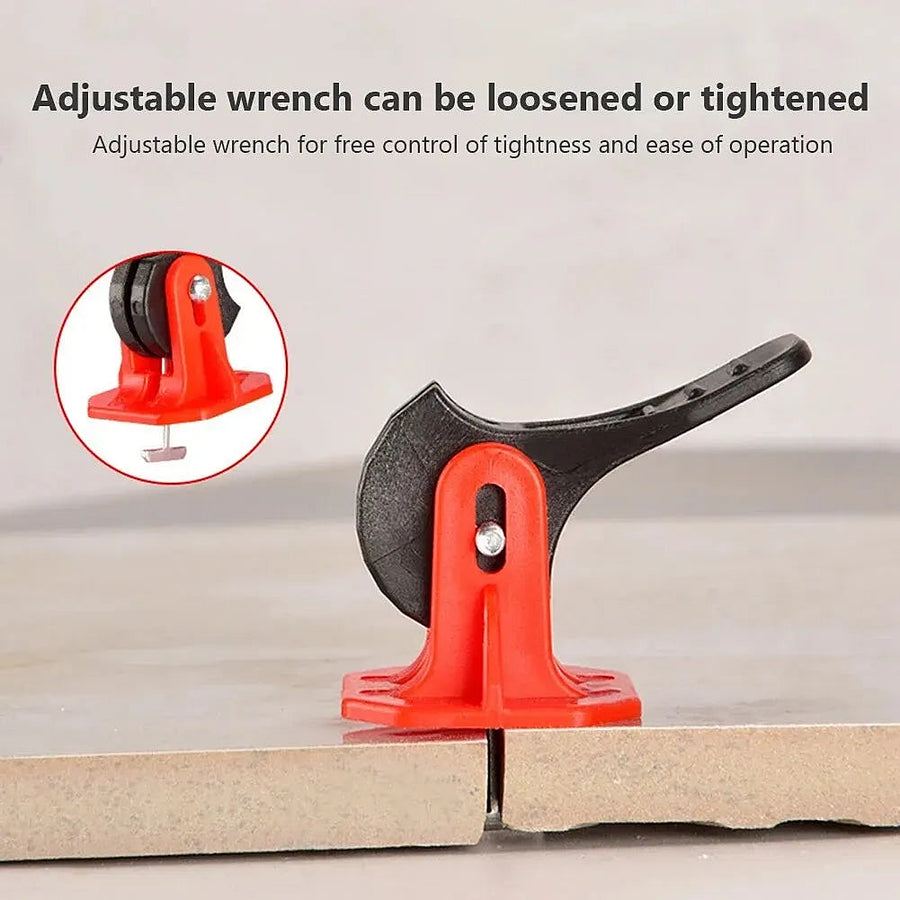

Across the joint
The base sits on both tiles, the pin in the 2 mm joint.

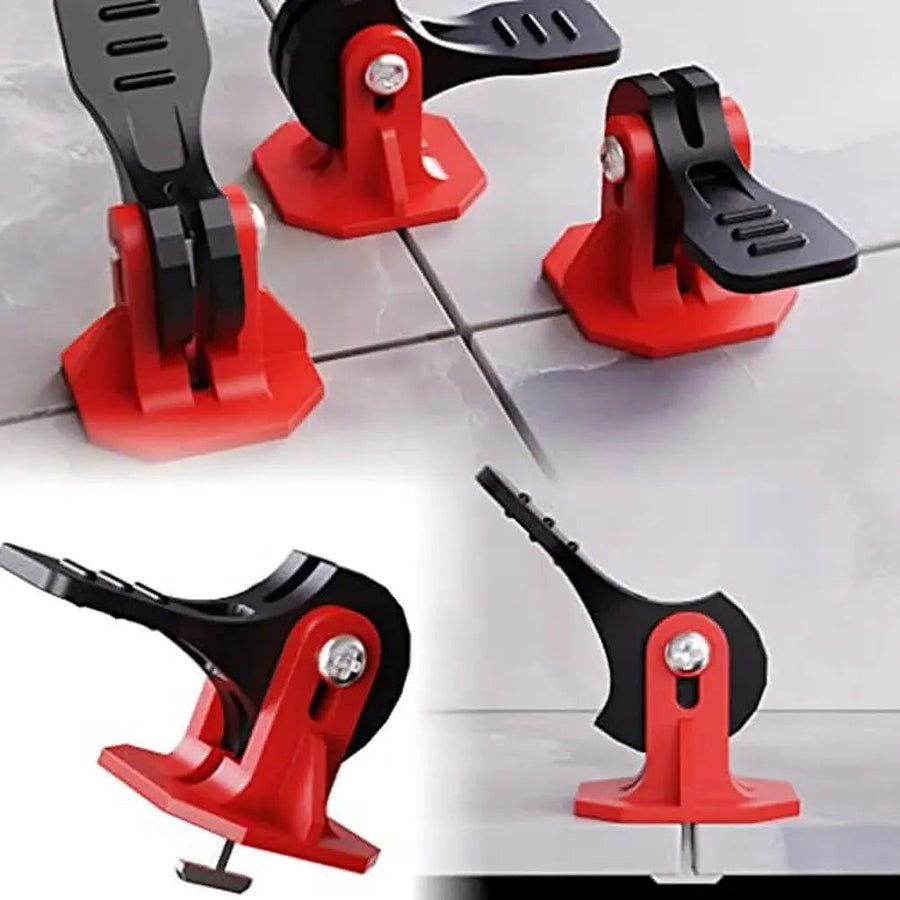

Up close
The steel screw and pin carry the clamping load.

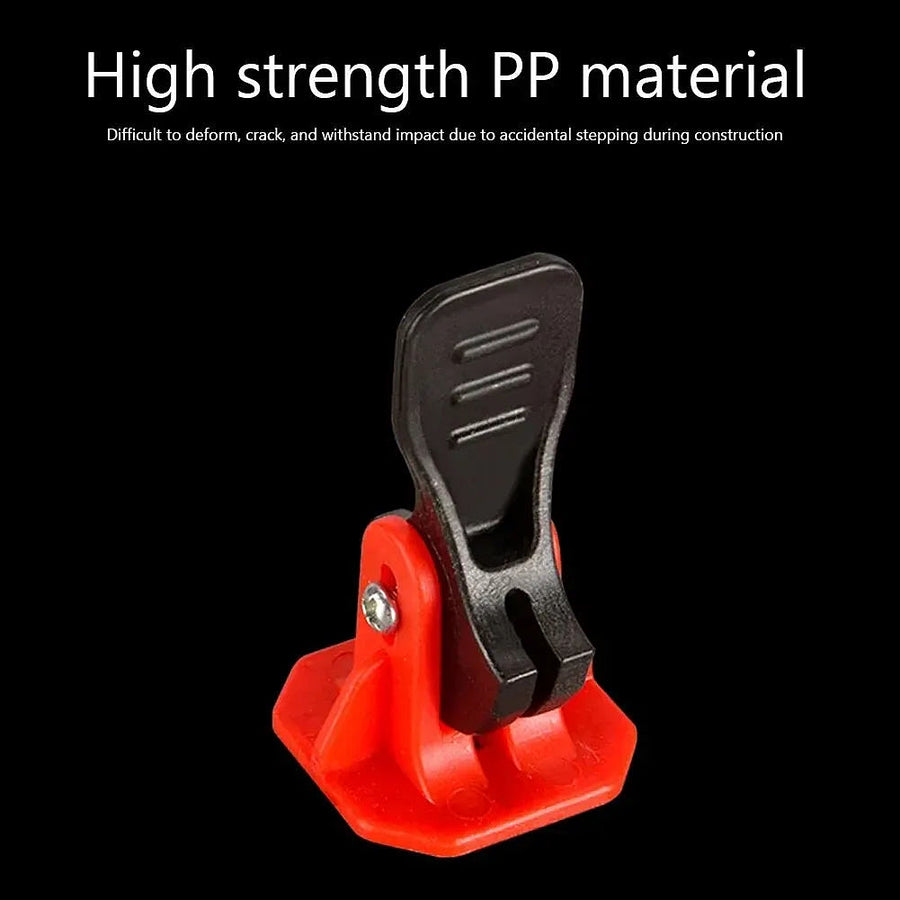

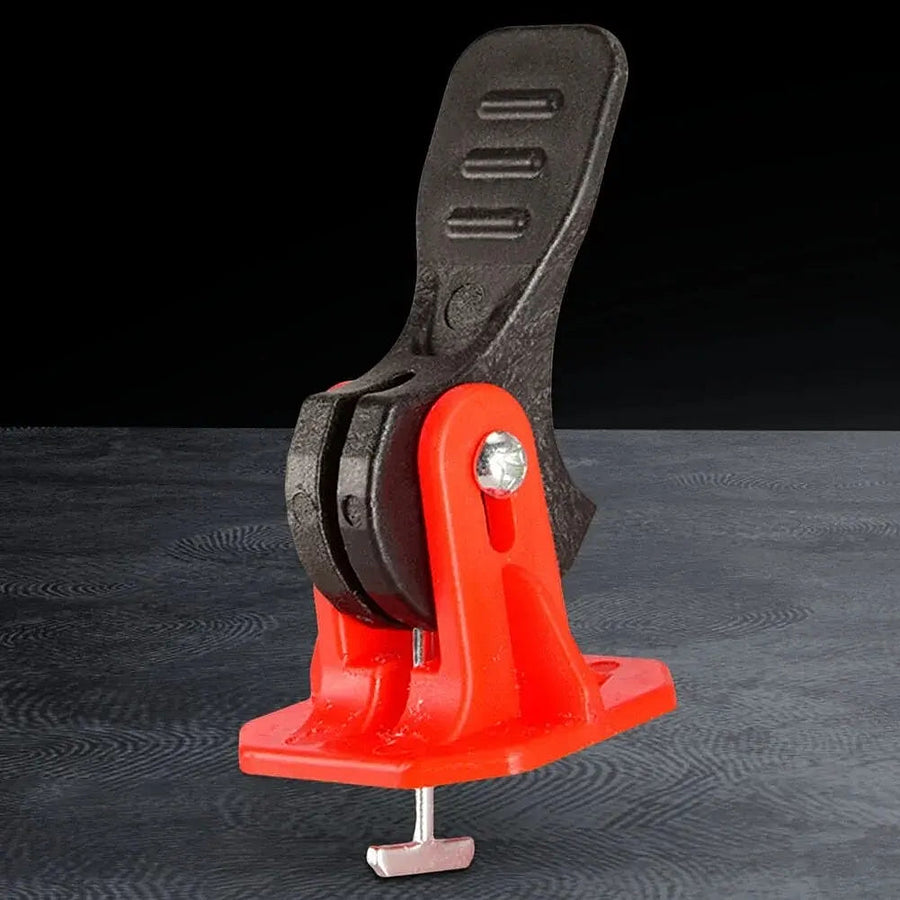

One leveler
Red PP base and tower, black cam lever, steel T-pin.

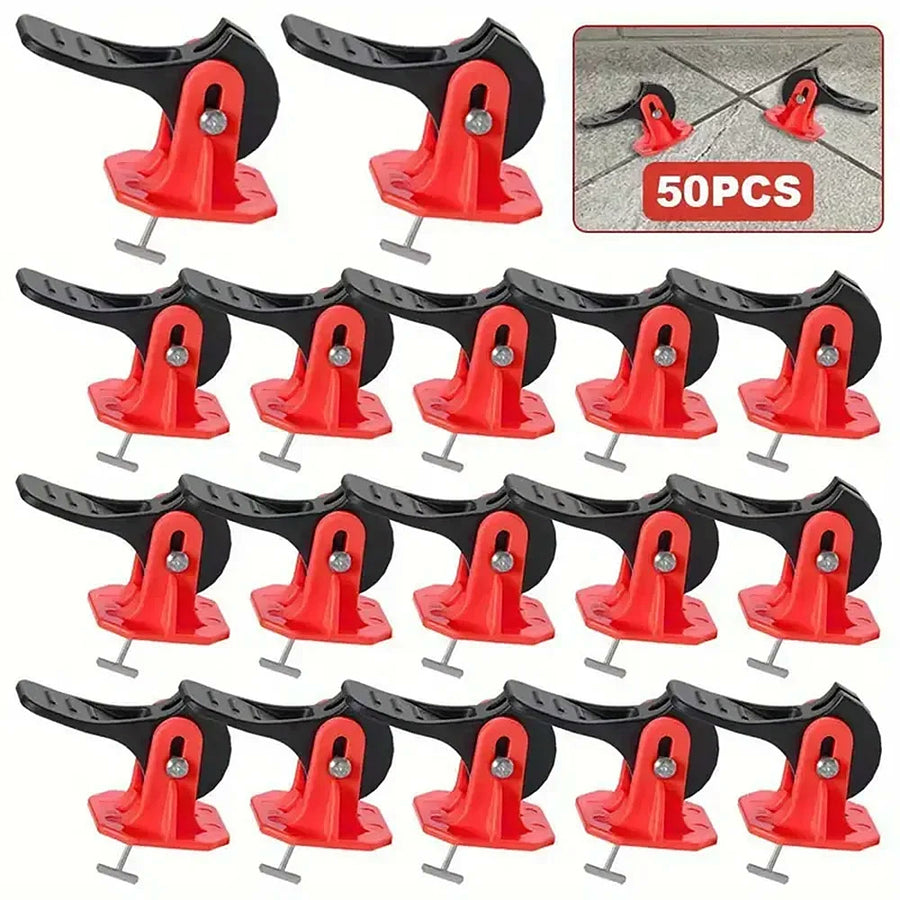

Fifty in the pack
Every leveler comes with its own steel T-pin.
Compared with the usual options
Cam levers, clips and wedges, or spacers alone?
Three ways to keep tile edges flush. Here is where this one wins and where it does not.
| Feature | These cam levelers | Clips and wedges | Plain spacers |
|---|---|---|---|
| Pulls edges flush | |||
| Locks by hand, no pliers | May need pliers, depending on the system | ||
| Reusable from job to job | Clips are usually single-use | ||
| Holds tiles while the mortar sets | |||
| Sets the joint width | 2 mm | Varies by clip |
Compared by type of tool, not by brand.
Free shipping on orders of $49 or more. Below that, standard shipping is a flat $4.95 to any of the 50 US states. Delivery takes 7–15 business days from the time you order, and that window already includes the 1–2 business days we take to process. Shipping & Delivery.
30-day returns. Items must be unused and in their original packaging. Email support@nexuratool.com with your order number to start a return. Returns & Refunds.
30 days from delivery. Email support@nexuratool.com with your order number and what you want to return. We reply with a return address — do not send anything back before you have it, or we cannot match the parcel to your order.
What we can take back: unused items in their original, undamaged packaging. Adhesives, sealants and lubricants cannot be returned once opened; the same goes for any item with a broken safety seal. That is a safety and hazardous-goods rule, not a preference.
Who pays: return shipping is paid by you, except when the item arrived damaged, faulty or was not what you ordered — then we cover it and refund the original shipping too.
Refunds go back to the original payment method within 5 business days of the return reaching us. Full returns policy.
QUESTIONS PEOPLE ASK
Before you order
What tile does it fit?
How many do I need?
How do they come out?
What if a pin bends?
Do I still need spacers?
When do I grout?
Is the 3D picture the real product?
How long does delivery take, and can I return it?
Reusable · 8–13 mm tile · 2 mm joint
Flush edges, tile after tile.
50 reusable cam-lever levelers with steel T-pins. Free US shipping from $49, and 30 days to return it unused.
